P.6 NETWORKING

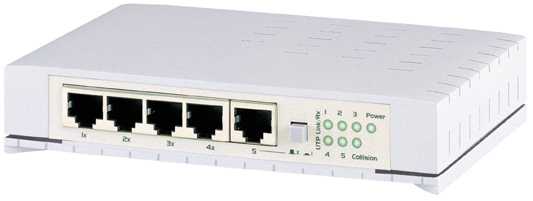

10Base-T Ethernet SOHO Hub

5 shielded RJ-45 connectors.
Port 5 features a crossover switch which provides the option of connecting to a workstation or cascading to another hub.
LED's indicate the status of each port to easily diagnose network problem.
Auto-detection and auto-correction for wire polarity reversal problem on each port.
Each port supports auto-partition and recovery function.
#04878 SOHO network kit includes 2 #04815 PCI adapters, one #04877 5 UTP port hub, 2 patch cords.

NO.	DESCRIPTION
04877	5 UTP port 10Base-T SOHO hub
04878	SOHO network kit

100Base-TX/FX Fast Ethernet PCI Adapter

04769

Supports 32-bit PCI bus master operation.
Supports full-duplex operation for up to 200 Mbps data transfer rate.

NO.	DESCRIPTION
04769	32-bit 10/100Base-T PCI adapter
04983	Boot ROM for 10/100Base-T PCI adapter

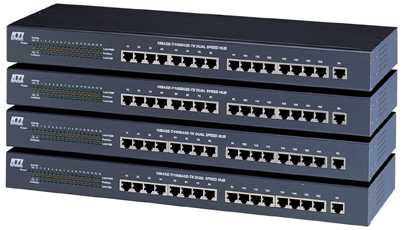

10/100Base-TX Auto Speed Sensing Stackable Hub

Provides 8, 16 or 24 10/100Mbps auto-sensing UTP ports
One extra uplink jack for easy hub to hub connection.
Supports internal switch to bridge both 10Mbps and 100Mbps segments.
Stackable up to 4 units.
Auto-partiton and recovery function for each port.

NO.	DESCRIPTION
04781	8 auto-sensing UTP port hub, Master
04783	16 auto-sensing UTP port hub, Master
04779	24 auto-sensing UTP port hub, Master

100Base-TX/FX Fast Ethernet Stackable Hubs

Features 11 100Base-TX and one ST fiber ports.
Allows interconnection of stacks up to 400 meters using fiber.
Provides hub to hub connections for cascading up to 4 units per stack.
19" Rack mountable.

NO.	DESCRIPTION
04785	11 100Base-TX & 1 ST fiber port stackable hub

10Base-T/100Base-TX to 100Base-FX Converter

Features RJ-45 jack and a ST/SC fiber optic connector which allows it to connect 10Base-T or 100Base-FX (fiber) network.
Auto-detection of half/full duplex mode.
Status LEDs for Activity & Link.

NO.	DESCRIPTION
04772	100Base-TX to FX converter, ST
04773	100Base-TX to FX converter, SC
04933	10Base-T to FX converter, ST

Ethernet Repeaters

Supports two BNC, two UTP, and one AUI port at the same time.
Extra UTP port for connection to another 10Base-T hub.
LED's indicate Link, Partition, Power/Activity, and Collision status.

NO.	DESCRIPTION
04950	2 BNC, 2 UTP, 1 AUI port repeater

Supports one BNC, one UTP, and ST fiber optic port at the same time.
Extra UTP port for conncetion to another 10Base-T hub.
LEDs indicate Link/Rx, Partition, and Power/Collision.

NO.	DESCRIPTION
04948	1 BNC, 1 UTP, 1 ST port repeater

Ethernet Transceivers

Selectable SQE test and link test functions.
AUI to BNC transceiver supports Jabber function to prevent corrupting the network due to the defective transmit circuitry.
AUI to UTP transceiver can detect and correct the wiring polarity reversal on the receiving pair of the UTP wire automatically.
AUI to Fiber Optic transceiver provides for operation up to 2KM of fiber optic cable.

NO.	DESCRIPTION
04935	AUI to UTP transceiver
04946	AUI to BNC transceiver
04947	AUI to Fiber Optic transceiver
04932	Mac AUI combo transceiver
04934	UTP/BNC Ethernet converter
