ASSESSORIES

P.29 CABLE MANAGEMENT/RACK

WIRE MARKERS

07145

07134

Cloth label: consecutive numbers 1-34 per label, 10 labels/pack.
Clip on: consecutive numbers 0-9, 100 clips of each number/pack.

NO.	DESCRIPTION
07134	Cloth label wire marker
07145	Clip on wire marker

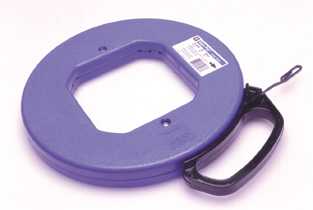

FISH TAPE REEL & WINDER

1/8" steel fish tape.
50" length.
Provides fast, easy, convenient tape handling and storage.
High-grade, tempered steel tape is fully protected and locked in reel when not in use so tape cannot kink or spring free.
Winder case is built of high-impact plastic that never dents or rusts.

NO.	DESCRIPTION
10935	Fish tape reel & winder

CABLE TIES

NO.	DESCRIPTION
07112	4" plastic cable tie, 100/bag
07117	6" plastic cable tie, 100/bag
07121	8" plastic cable tie, 100/bag
07123	12" plastic cable tie, 100/bag

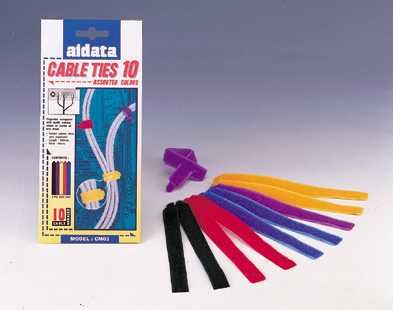

AIDATA CABLE TIES

10 Velcro cable ties/pack.
5 assorted colors, 2 per each color.
Keeps cables neat and organized.

NO.	DESCRIPTION
41009	Colored Velcro cable ties

FLEXIDUCT CORD COVERS

Fits cords up to 1/2" diameter.
Pre-split for easy installation.
Available in Beige, Brown, Grey.

NO.	DESCRIPTION
10267B	6' cord cover, beige
10267W	6' cord cover, brown
10267G	6' cord cover, grey

RACK MOUNT CABINETS WITH EXHAUST FAN & CASTERS

Conforms to EIA-310-C standards for 19" enclosed racks.
Constructed of #16 GA steel.
Fully welded construction.
24" deep cabinet frame.
10Ó 550CFM AC power fan with 36" grounded line cord.
3" dia X 1 1/4" wide high impact locking casters.
Furnished with two pairs of #12 GA steel EIA mounting rails, fully adjustable front to back, tapped #10-32 on 5/8", 5/8", 1/2" universal spacing.
Cabinet base has 18" x 12 1/2" cutout for cables.
Overall dimension: 76 1/2" H x 25" W x 25" D.

NO.	DESCRIPTION
02984	Rack mount enclosure w/fan & casters
02986	19" x 18" deep monitor shelf for rack mount enclosrue, four point mount

WALL MOUNT CABINET

02979

Conforms to EIA-310-C standards for 19" enclosed racks.
Constructed of #16 GA steel.
Fully welded construction.
21" overall cabinet depth, 23 5/8" height, 12 rack units.
Front section of cabinet is hinged for easy access to equipment.
Keyed lock on side as well as front of cabinet provides the needed security.
Door can be right or left hinged and is constructed of satin brushed aluminum. Includes access handle, security lock, magnetic strip and foam gasketing.
Plexi-panel is 1/4" thick smoke gray extruded acrylic.
One pair of equipment mounting rails tapped #10-32 on 5/8", 5/8", 1/2" centers.
Knock-out located top and bottom of cabinet for wire and cable entry.
Front section of cabinet is vented top and bottom. The vented areas are covered with removable flat panels.

\NO.	DESCRIPTION
02979	24" wall mount enclosure
02975	Exhaust fan for wall mount enclosure
02980	Vertical mounting rails for wall mount enclosure
